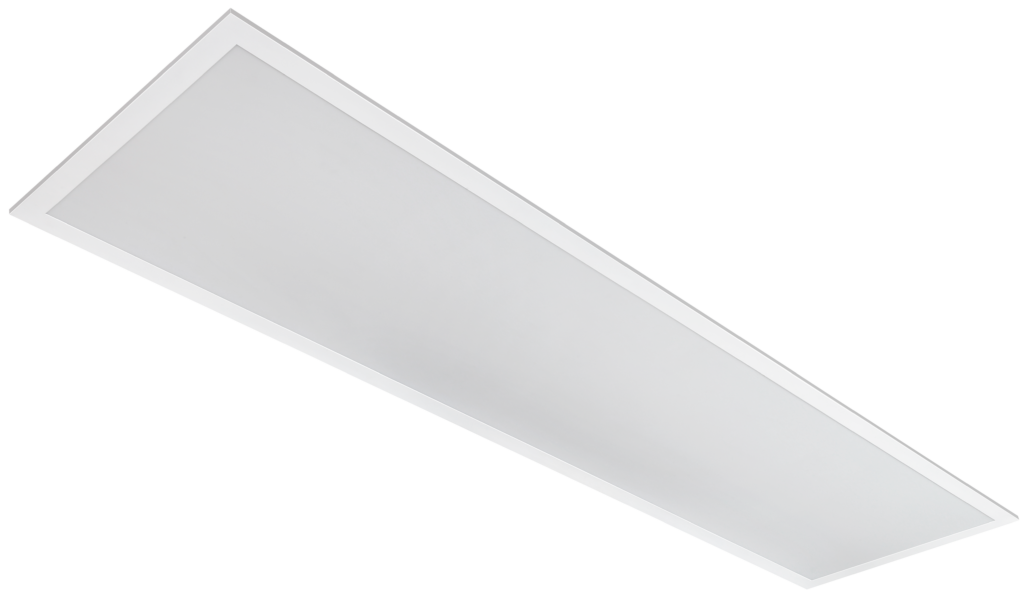

LED Backlit Panel
Commercial LED backlit panels providing clean, even illumination for offices, retail spaces, schools, and other commercial interiors.
- Selectable wattage
- Selectable CCT
- 0-10V dimming
- UL Listed
- DLC Premium
Key Features
- Selectable Wattage — Adjust output for different project requirements.
- Selectable CCT — 3500K / 4000K / 5000K.
- High Efficiency — Designed for efficient commercial illumination.
- 0–10V Dimming — Compatible with commercial dimming controls.
- Sensor Ready — Available with prewired sensor capability where applicable.
- 5-Year Warranty — Warranty coverage on applicable models.
- Multiple sizes — Available in 2×2, 2×4, and 1×4 ft.
Specifications
|
Dimensions (ft/mm) |
Wattage (W) |
Max Lumens (lm) |
|

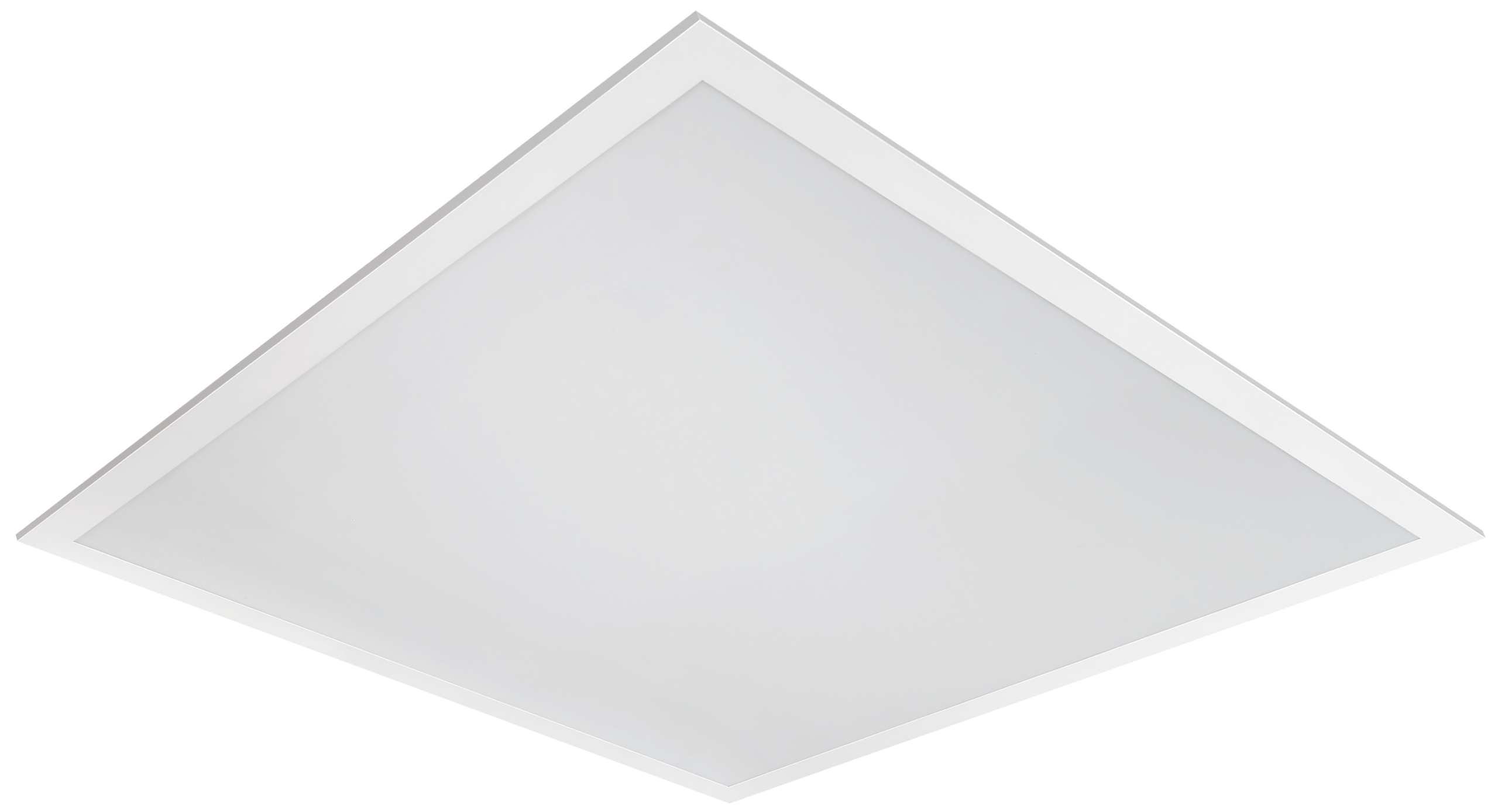

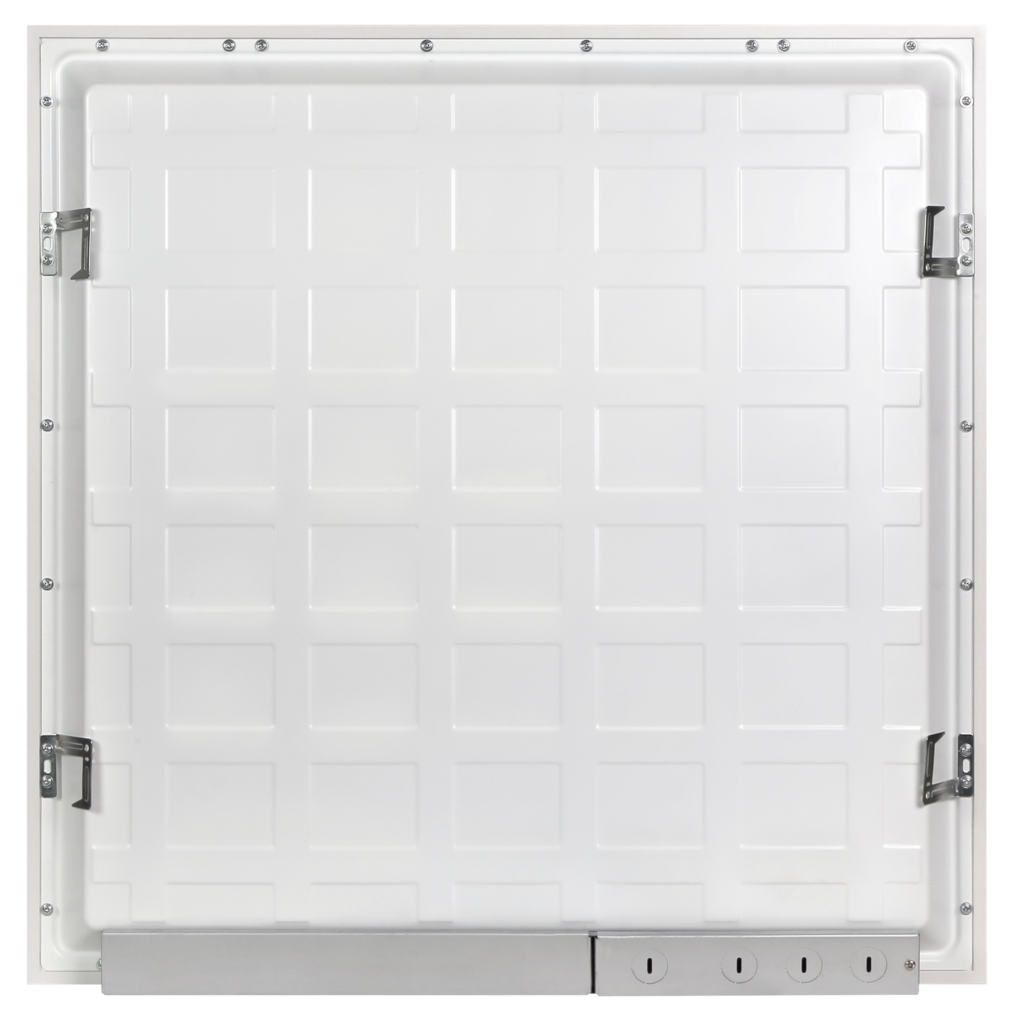

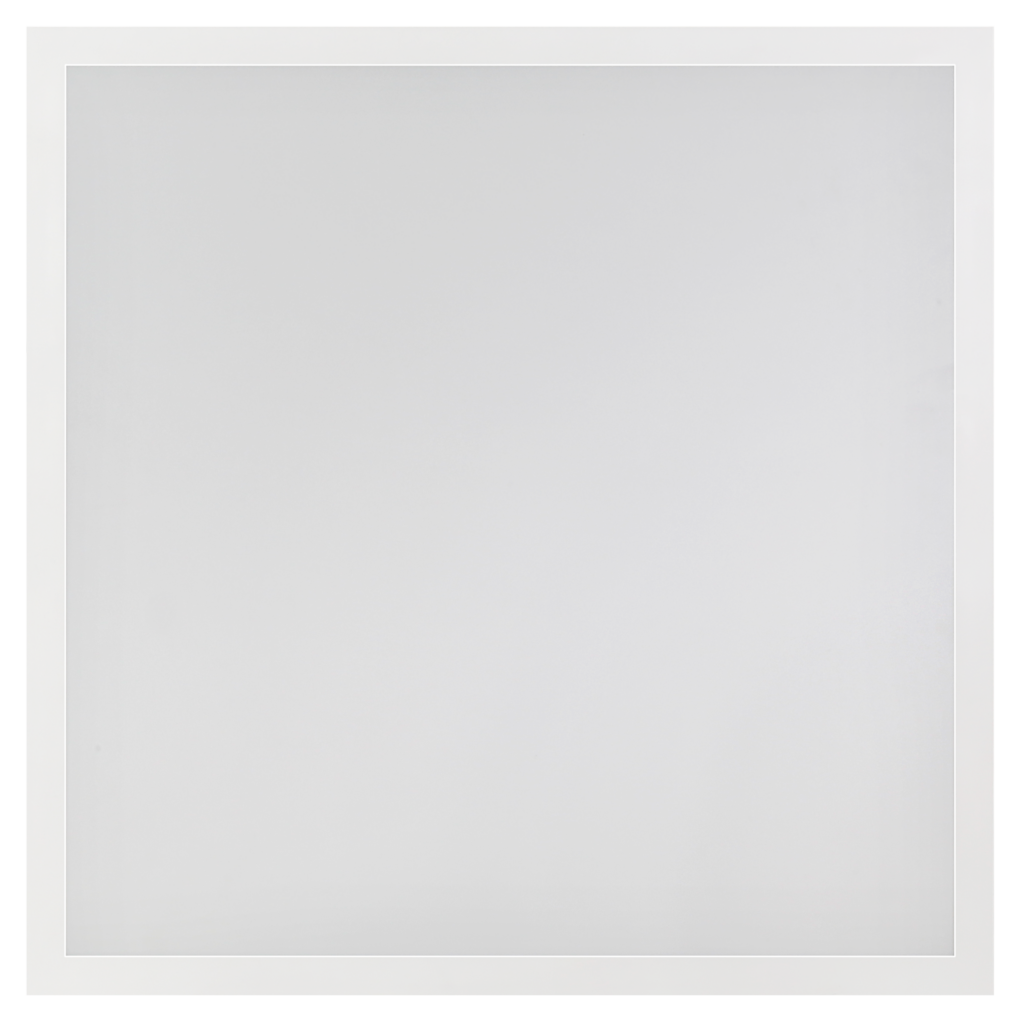

2 X 2 / 605 X 605 |
15/19/24/29 |
3770 |
|

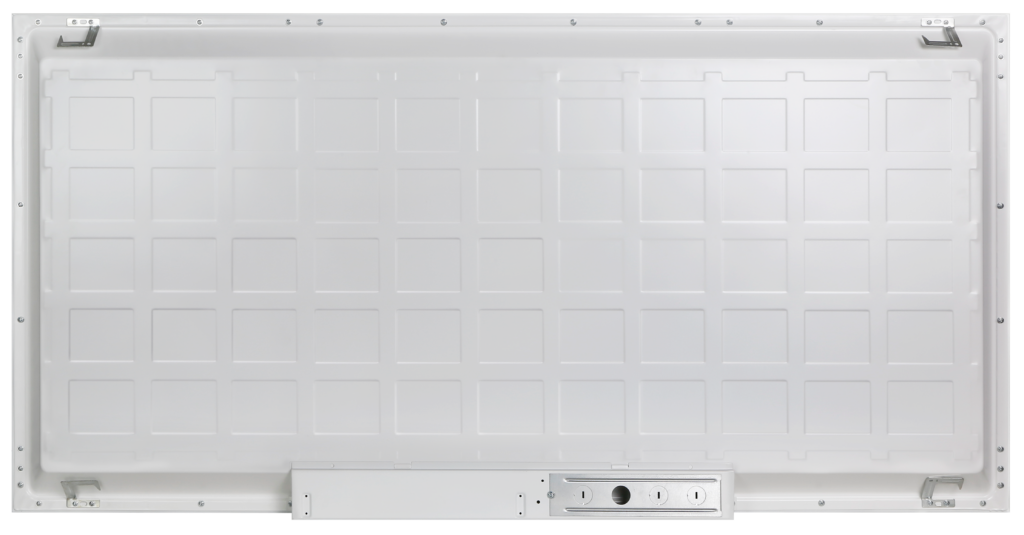

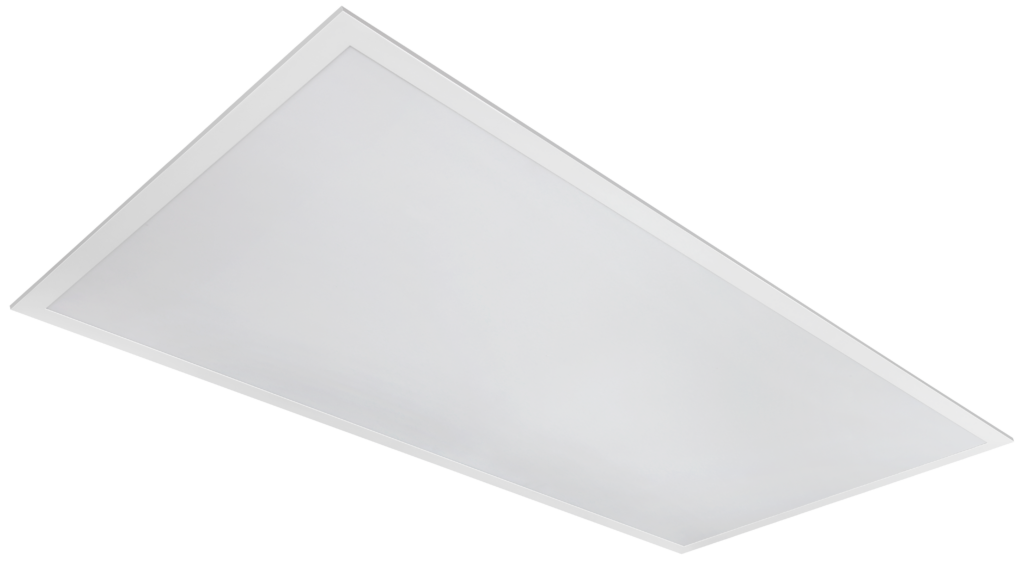

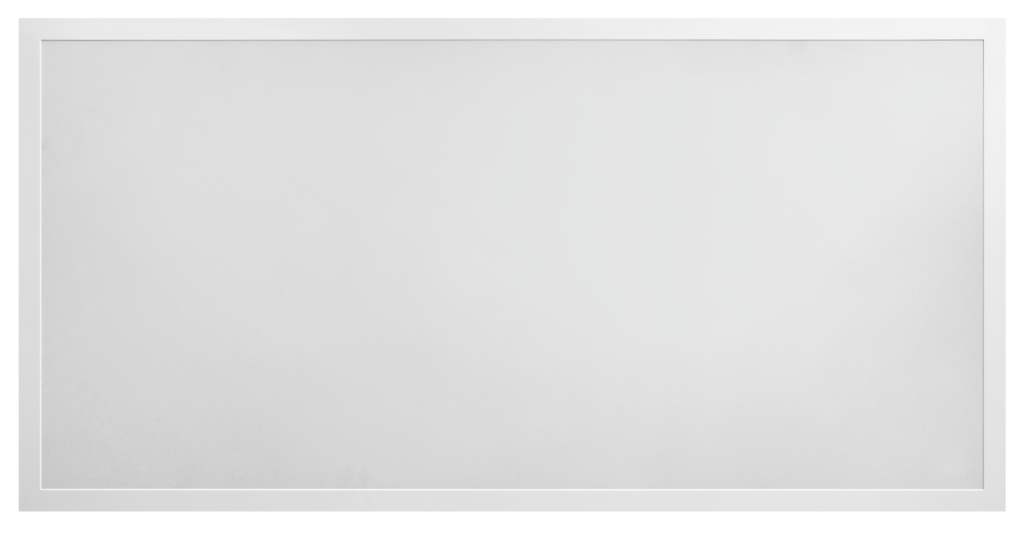

2 X 4 / 605 X 1214 |
30/40/50/60 |
7800 |
|

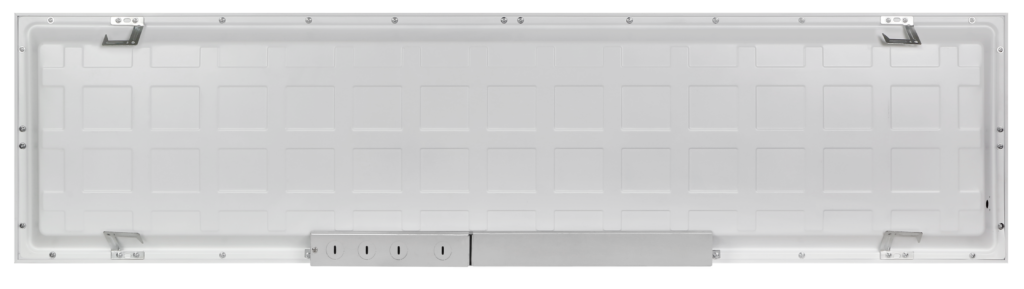

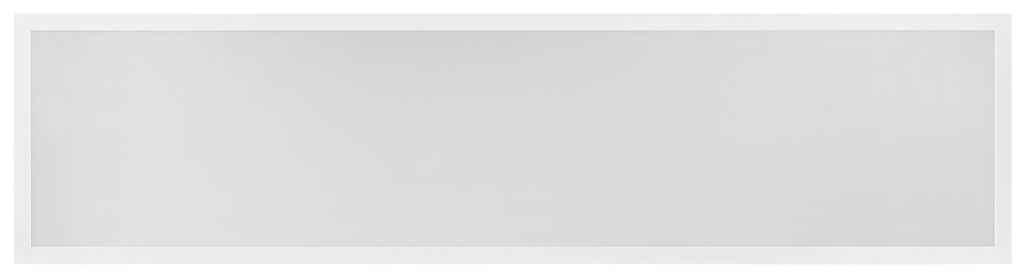

1 X 4 / 300 X 1214 |
15/19/24/29 |
3770 |
Common Specifications |
Details |
|
CCT |
3500/4000/5000 |
|
Voltage |
120-277V |
|
Dimming |
0-10V |
|
Efficacy |
>150LM/W |
|
Certification |
UL, DLC Premium |
|
Warrenty |
5 Years |
Applications
- Office
- Retail
- School
- Conference Room
- Commercial Interior
